Setting up a Drug-Drug Interaction in PK-Sim‌

Inhibition of a metabolizing enzyme or transporter by a drug can be defined directly in PK-Sim® in a simple and user-friendly manner. In the example workflow below, a drug-drug-interaction (DDI) model is set up using preconfigured templates compounds, e.g. the drug itraconazole, its metabolite hydroxy-itraconazole, and midazolam.
Load the predefined compound from templates into PK-Sim® by clicking on the Compound icon in the Load Building Blocks menu of the Import/Export tab.
Load predefined compounds templates to ease set up of a DDI
In this case, the preconfigured itraconazole compound building block is imported.
Itraconazole is a predefined compound
In the predefined compound Itraconazole, Hydroxy-Itraconazole is already pre- specified as primary metabolite. However, users can make changes to all fields if desired and well-founded.
Metabolite Hydroxy-Itraconazole is predefined for Itraconazole
Process type and Ki values of the inhibition have already been pre-specified for the template compounds Itraconazole and Hydroxy-Itraconazole:
Process type is predefined for Itraconazole/Hydroxy-Itraconazole
Next, expression levels of metabolizing enzymes can be added to the Individual building block to be used in the simulation:

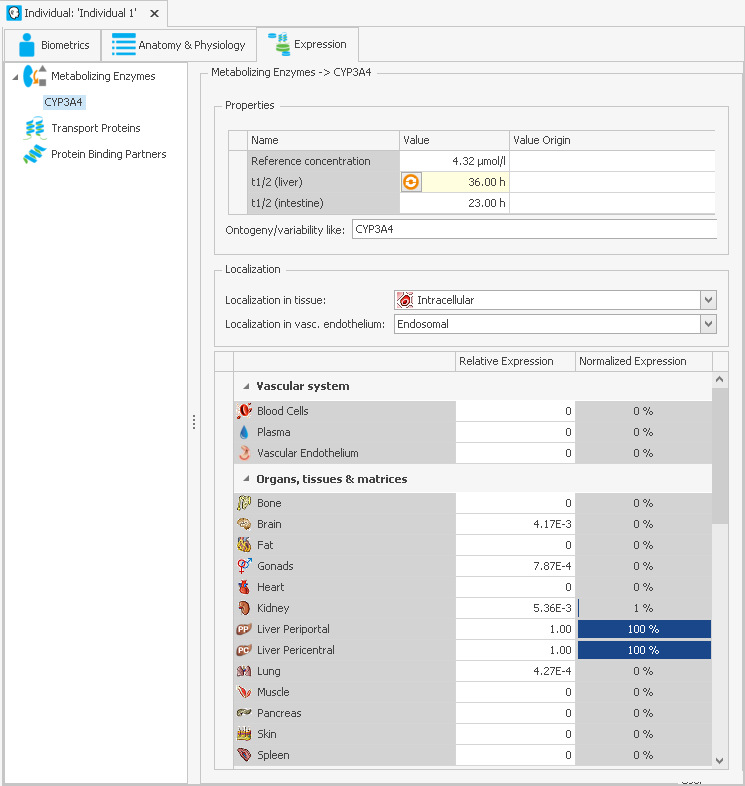

Expression levels of enzymes needs to be specified
Further building blocks can be defined in the respective sections and a simulation is then created by clicking on the Create button in the Simulation section in the Modeling and Simulation tab.
In the pre-configured compound templates, the inhibition processes for each enzyme or transporter are predefined, but can be adjusted by the user if applicable. Enzymes present in the Individual building block are matched with processes specified in the used Compound building blocks and metabolites are defined. Also, systemic processes regarding transport or excretion (e.g. ‘Glomerular Filtration’ like in the example displayed here) are shown and can be modified as desired.
Processes associated with Itraconazole and Hydroxy-Itraconazole in the pre- defined template
In the next step, application protocols for each compound are defined using the available building blocks the user has configured before.
Definition of administration protocols for each compound from available building blocks
After having added and matched all building blocks required, the simulation is set up and can be run by either hitting F5 or using the Run button in the Simulation section of the Modeling and Simulation tab.
After running the simulation, all compounds and metabolites (in this case Itraconazole, Hydroxy-Itraconazole and Midazolam) can be plotted and the simulated PK data can be analyzed for each.
Analysis view of all Itraconazole, Hydroxy-Itraconazole and Midazolam
Also, at any given time after the simulation has been created, the simulated metabolic network that was defined can be displayed as a reaction diagram. Like in MoBi®, the blue dot of the reaction triangle connects to the educts of the reactions, the red dot to catalysts (e.g. interacting substances, enzymes or transporters) and the green dot to reaction products as shown below.
Reaction diagram is the graphical representation of the metabolic network
